Errors
Error Indication

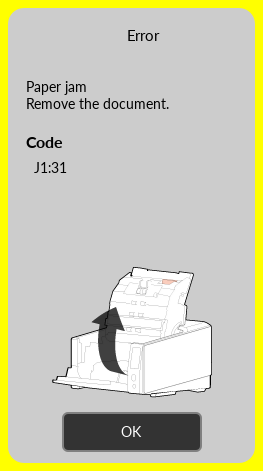

When an error occurs on the scanner, the [Error] screen is displayed on the touch screen.
![[Error] Screen](../common/../images/touch_message.png)
Check the solution for the error and press the [OK] button to close the [Error] screen.
Error Recovery Guide is started up and the icon is displayed in the notification area of the task bar when you logged onto Windows.
When an error occurs on the scanner, the error name and code number is displayed in the Error Recovery Guide window.
Take note of the displayed information and click the [More Info] button to check the troubleshooting procedure.
Error Code List
Error Code |
Overview of Content in Operator Panel |
Content in Error Recovery Guide |
Refer to |
|---|---|---|---|
A1:B3 |
Imprinter error (communication timeout) (when the imprinter is installed) |
Imprinter error (communication timeout) |
|
A2:B5 |
Imprinter error (print head) (when the imprinter is installed) |
Imprinter error (print head) |
|
A3:B6 |
Imprinter error (EEPROM) (when the imprinter is installed) |
Imprinter error (EEPROM) |
|
A4:B8 |
Imprinter error (ROM) (when the imprinter is installed) |
Imprinter error (ROM) |
|
C0:E5 |
Memory error (front) |
Memory error (Front) |
|
C0:E6 |
Memory error (back) |
Memory error (Back) |
|
C0:E9 |
LSI error |
LSI error |
|
C1:E0 |
LSI error (initialization failure) |
LSI error (Initialization failure) |
|
C8:F2 |
Internal communication error of the scanner |
Internal communication error of the scanner |
|
E2:74 |
Optical error (ADF front) |
Optical error (ADF front) |
|
E3:75 |
Optical error (ADF back) |
Optical error (ADF back) |
|
E6:D3 |
Operator panel error |
Operator panel error |
|
E7:D2 |
EEPROM error |
EEPROM error |
|
E9:F5 |
Image memory read-write error |
Image memory read-write error |
|
F1:C0 |
Hopper malfunction |
Hopper Malfunction |
|
F1:C1 |
Stacker malfunction |
Stacker Malfunction |
|
F1:C6 |
Hopper malfunction |
Hopper Malfunction |
|
F1:C7 |
Brake roller unit malfunction |
Brake roller unit malfunction |
|
F1:C8 |
Pick encoder malfunction |
Pick encoder malfunction |
|
F2:C9 |
Solenoid malfunction |
Solenoid malfunction |
|
F4:C2 |
Background switching mechanism error (ADF front) |
Background switching mechanism error (ADF Front) |
|
F4:C3 |
Background switching mechanism error (ADF back) |
Background switching mechanism error (ADF Back) |
|
F6:EC |
Fan malfunction |
Fan malfunction |
|
H1:80 |
Motor circuit error |
Motor circuit error |
|
H1:8B |
|||
H2:81 |
|||
H2:82 |
|||
H2:90 |
|||
H2:96 |
|||
H2:97 |
|||
H3:8C |
|||
H4:8D |
|||
H6:B1 |
Imprinter system error (when the imprinter is installed) |
Imprinter system error |
|
H8:88 |
Motor circuit error |
Motor circuit error |
|
J0:36 |
Failed to switch from Straight Scan |
Failed to switch from Straight Scan |
|
J0:38 |
Failed to switch from U-turn Scan |
Failed to switch from U-turn Scan |
|
J0:43 |
Paper damage prevention (staple detection on the top edge) |
Paper damage prevention (staple detection on the top edge) |
|
J0:44 |
Paper damage prevention (staple detection on the bottom edge) |
Paper damage prevention (staple detection on the bottom edge) |
|
J0:51 |
Paper damage prevention (feeding accuracy) |
Paper damage prevention (feeding accuracy) |
|
J1:31 |
Paper jam |
Paper jam |
|
J1:34 |
|||
J1:50 |
Pick error |
Pick error |
|
J2:55 |
Multifeed detected (overlap) |
Multifeed detected (Overlap) |
|
J2:56 |
Multifeed detected (length) |
Multifeed detected (Length) |
|
J3:54 |
Paper damage prevention (outside scannable area) |
Paper damage prevention (outside scannable area) |
|
J8:01 |
Sensor(s) dirty |
Sensor(s) dirty |
|
J8:02 |
|||
J8:03 |
|||
J8:04 |
|||
J8:05 |
|||
J8:06 |
|||
J8:07 |
|||
J8:08 |
|||
J8:0D |
|||
J8:0E |
|||
J9:61 |
Pick roller error |
Pick Roller error |
|
J9:64 |
Brake roller/separator roller(s) not installed correctly |
Brake Roller/Separator Roller(s) Not Installed Correctly |
|
L0:11 |
Sensor error |
Sensor error |
|
L1:12 |
|||
L2:13 |
|||
L3:14 |
|||
L4:15 |
|||
L5:17 |
|||
L5:18 |
|||
L6:1B |
|||
L6:2A |
|||
L6:2B |
|||
L7:1C |
|||
L7:29 |
|||
L8:1D |
|||
L8:1E |
|||
L8:1F |
|||
LB:1A |
|||
M1:D5 |
Wired LAN error |
— |
|
M4:AB |
Network setting error |
— |
|
U4:40 |
ADF open |
ADF open |
|
U5:4A |
Imprinter Cover Open |
Imprinter Cover Open |
|
U6:B4 |
Print Cartridge Not Installed (when the imprinter is installed) |
Print Cartridge Not Installed |
Print Cartridge Not Installed (When the Imprinter Is Installed) |
U7:B9 |
Imprinting area error (when the imprinter is installed) |
Imprinting area error |
|
— |
— |
Being used by others |
|
— |
The [Document Count] screen |
The scanner is in Doc Counting mode. |
|
— |
No paper. Load documents. |
— |
|
— |
Scanning was stopped. |
— |
|
— |
Pause |
Scanning has been paused by the user. |
|
— |
— |
Outside designated scan area error |
|
— |
— |
Invalid CDB field |
|
— |
— |
Invalid field parameter list |
|
— |
— |
Command sequence error |
|
— |
— |
Wrong windows combination |
