Setting the Control for Ejecting Documents [Stacking Control]

Set the control for ejecting documents when scanning documents with a document length of 138 mm or shorter.

Select [Stackability Emphasis] when you want to stack the ejected documents neatly, and select [Speed Emphasis] when you want to speed up the scanning speed.

  1. Start up the Software Operation Panel.

    Refer to Starting Up the Software Operation Panel.

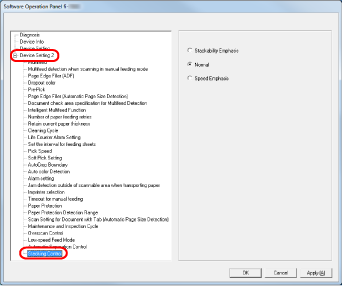

  2. From the list on the left, select [Device Setting 2] → [Stacking Control].
    Stacking Control
  3. Specify the Stacking Control.
    Stackability Emphasis

    Stacks up the ejected documents neatly.

    However, the scanning speed slows down with this setting.

    Normal

    When [Normal] is selected, the scanning speed is faster than when [Stackability Emphasis] is selected.

    When [Normal] is selected, the ejected documents are stacked more neatly than when [Speed Emphasis] is selected.

    Speed Emphasis

    The scanning speed becomes fast with this setting.

    However, the ejected documents are not stacked neatly.

    HINT

    This setting can also be configured from the operator panel.
