Adjusting the Output Result for Overscan [Overscan Control]

Specify [Optimize] when you use overscan and the image is partially missing due to a large skew.

When an abnormal image skew is detected, you can ensure that the whole image is contained by setting a sufficient amount of black margin on the top and the bottom. Select [Thick] to increase the amount of black margin.

Overscan Control
  1. Start up the Software Operation Panel.

    Refer to Starting Up the Software Operation Panel.

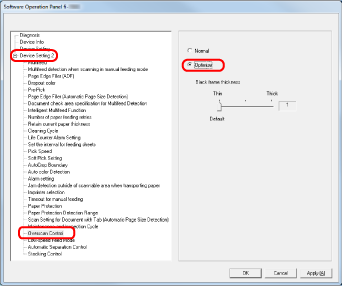

  2. From the listing on the left, click [Device Setting 2] → [Overscan Control], then select [Optimize].
    Overscan Control
  3. Specify the amount of [Black frame thickness] for the top and bottom.
    HINT

    • This option is recommended to be used with [Set the interval for feeding sheets].

    • It is recommended that you scan in the largest available paper size.
