Adjusting the Starting Position for Scanning [Offset Setting/Vertical magnification Adjustment]

When the output position of the scanned image is not correct or the image appears shortened/elongated (vertically), use the following procedure to adjust the offset and the vertical magnification for correction.

ATTENTION

Normally, you should not have to make any adjustments as the factory default settings are configured at appropriate values.

  1. Start up the Software Operation Panel.

    Refer to Starting Up the Software Operation Panel.

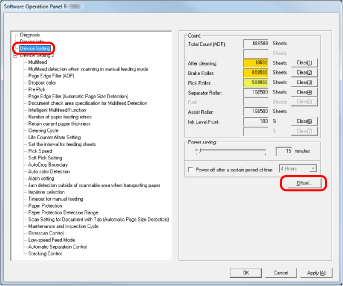

  2. From the list on the left, select [Device Setting] and click the [Offset] button.
    Offset
  3. Adjust the offset/vertical magnification as necessary.
    Vertical Magnification Adjustment

    Offset Setting

    Description

    Unit

    Select [ADF (front)] or [ADF (back)] as the unit for an offset adjustment.

    Main

    Adjusts the horizontal (width) offset.

    The setting range is from -2 to 3 mm in 0.5 mm increments.

    Sub

    Adjusts the vertical (length) offset.

    The setting range is from -2 to 3 mm in 0.5 mm increments.

    Vertical magnification Adjustment

    Description

    Unit

    The unit for a vertical magnification adjustment is fixed to [ADF].

    Vertical magnification Adjustment

    (length)

    Adjusts the vertical (length) magnification.

    The setting range is from -3.1 to 3.1% in 0.1% increments.
