Cleaning the Inside of the Scanner (ADF) with a Cloth

The inside of the ADF can be cleaned with a piece of cloth moistened with Cleaner F1, or a sheet of Cleaning Wipe.

As the scanner continues to feed the documents, paper dust will accumulate inside the ADF and it may cause scanning errors. Cleaning should be performed approximately every 3,000 sheets scanned. Note that this guideline varies depending on the types of documents you scan. For instance, it may be necessary to clean the scanner more frequently when you scan documents on which the toner is not sufficiently fused.

The inside of the ADF becomes very hot when the scanner is being used.

Before you start cleaning the inside of the ADF, make sure to turn off the power, unplug the power cable and wait for at least 15 minutes for the inside of the ADF to cool down.

ATTENTION

  • Do not use water or mild detergent to clean the ADF.

  • It may take a long time to dry if an excessive amount of Cleaner F1 is used. Use only a small amount. Wipe off the cleaner completely to leave no residue on the cleaned parts.

  1. Turn off the scanner and wait for at least 15 minutes.

    For details, refer to How to Turn the Power OFF.

  2. Open the ADF.

    For details, refer to How to Open the ADF.

    When the ADF is open, it might close accidentally. Be careful not to get your fingers caught.

  3. Clean the following locations with a cloth moistened with Cleaner F1, or a sheet of Cleaning Wipe.

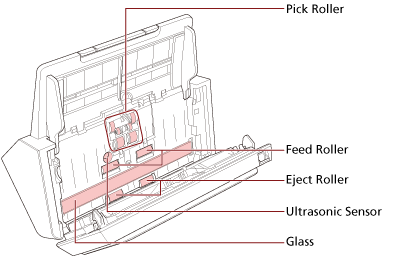

    Cleaning Location
    Cleaning Location
    ATTENTION

    Make sure that the cloth does not get caught and damage the document sensors.

    Cleaning the Document Sensors
    Brake roller (× 2)

    Remove the brake roller from the scanner.

    For details about removing the brake roller, refer to Replacing the Roller Set.

    Gently wipe dirt and dust off the roller, taking care not to damage the roller surface.

    Cleaning the Brake Roller
    Pick roller (× 6)

    Gently wipe dirt and dust off the roller as you rotate the roller manually, taking care not to damage the roller surface. Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.

    Plastic idler roller (× 4)

    Gently wipe dirt and dust off the roller as you rotate the roller manually, taking care not to damage the roller surface. Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.

    Glass (× 2)

    Gently wipe dirt and dust off the glass sections.

    ATTENTION

    Vertical streaks may appear on images if the glass section is dirty.

    Ultrasonic sensor (× 2)

    Gently wipe dirt and dust off the surface of the ultrasonic sensors.

    HINT

    If it is difficult to clean, use a cotton swab.

    Cleaning the Ultrasonic Sensors
    Feed roller (× 2)/Eject roller (× 2)

    The power must be turned on to rotate the feed/eject rollers for cleaning.

    1. Turn on the scanner.

      For details, refer to How to Turn the Power ON.

    2. When the operator panel is in ready status, open the ADF.

      For details, refer to How to Open the ADF.

    3. Press the scan/stop button on the operator panel for 2 seconds or more.

      Operator Panel

      The feed/eject rollers rotate at the same time.

      Be careful not to touch the rollers with your hand while they are rotating.

    4. Put a piece of cloth moistened with Cleaner F1 or a sheet of Cleaning Wipe against the surface of the feed/eject roller, and wipe horizontally to clean dirt and dust off the whole surface.

      Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.

  4. Close the ADF.

    For details, refer to How to Close the ADF.

    Be careful not to get your fingers caught when closing the ADF.

    ATTENTION

    Confirm that the ADF is closed properly. Otherwise, documents may not be fed into the ADF.
