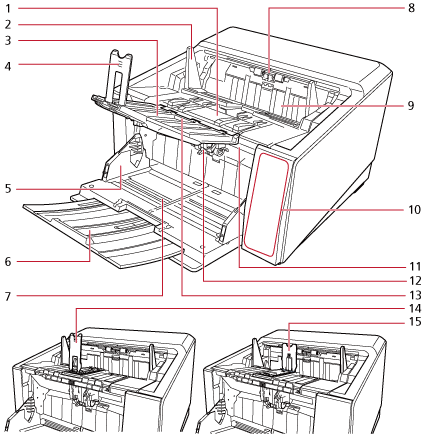

Stacks up the ejected documents.

The stacker lowers automatically as documents are stacked to keep the top of the stacked documents at the same height. This keeps ejected documents neatly stacked.

Guides the ejected documents in the width direction to prevent them from being scattered.

Lift it up toward you and adjust it to the length of the documents.

Guides the ejected documents in the length direction to prevent them from being scattered. Though documents can be aligned without the stacker stopper (large), it can be used to stack them more neatly.

This can be used when the stacker extension is being lifted up.

There are three types of stacker stoppers: stacker stopper (large), stacker stopper (medium), and stacker stopper (small).

Use each stacker stopper in accordance with the length of the documents.

For details, refer to Adjusting the Stacker.

Guides documents in the width direction so that they are fed in the scanner without being skewed.

Pull out to place long documents on the hopper.

A table for loading documents to scan.

Ejects the scanned documents.

Open this to replace a print cartridge or adjust the print position in the Front-Side imprinter.

Confirm that the Front-Side imprinter cover is closed properly.

For details, refer to the fi-890PRF/fi-890PRB Imprinter Operator's Guide.

It consists of a touch screen and buttons.

It can be used to operate the scanner or check its status.

For details, refer to How to Use the Operator Panel.

Push up to open the ADF.

Pulls and feeds the documents loaded on the hopper one at a time.

Open this to replace consumables or to clean the inside of the scanner.

Used to adjust the angle of the stacker extension.

Guides the ejected documents in the length direction to prevent them from being scattered.

This can be used when the stacker extension is being closed.

There are three types of stacker stoppers: stacker stopper (large), stacker stopper (medium), and stacker stopper (small).

Use each stacker stopper in accordance with the length of the documents.

For details, refer to Adjusting the Stacker.

Open this to replace a print cartridge or adjust the print position in the Back-Side imprinter.

Confirm that the Back-Side imprinter cover is closed properly.

For details, refer to the fi-890PRF/fi-890PRB Imprinter Operator's Guide.

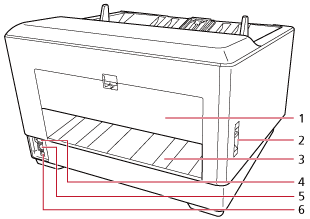

Switches between paper outputs.

Sliding this upward to switch to U-turn Scan.

Slide this down to switch to Straight Scan.

When the paper output selection switch is used to switch to Straight Scan, scanned documents are ejected here.

Used to connect the USB cable.

Used to connect a LAN cable.

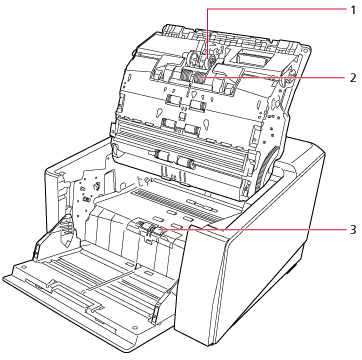

A roller which feeds documents loaded on the hopper into the ADF.

For information on how to remove the pick rollers, refer to Replacing the Pick Roller.

A roller unit that separates one sheet off the stack of documents fed by the pick rollers and feeds the document into the ADF.

For information on how to remove the separator roller, refer to Replacing the Separator Roller.
