Adjusting the Starting Position for Scanning [Offset Setting/Vertical magnification Adjustment]

When the output position of the scanned image is not correct or the image appears shortened/elongated (vertically), adjust the offset and the vertical magnification.

ATTENTION

Normally, you should not have to modify anything as the factory default settings already use adjusted values.

  1. Start up the Software Operation Panel.

    For details, refer to Starting Up the Software Operation Panel.

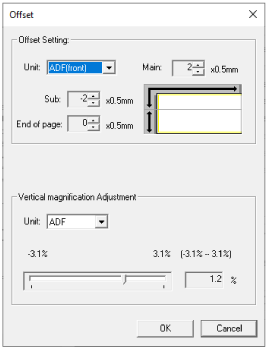

  2. From the list, select [Device Setting] and click the [Offset] button.
  3. Adjust the level of offset/vertical magnification as needed.
    Offset
    Offset Setting
    Unit

    Select [ADF(front)] or [ADF(back)] as the unit for an offset adjustment.

    Main

    Specify the horizontal (width) offset.

    The specified value can range from -2 to +2 mm (in increments of 0.5).

    The factory default setting is "0".

    Sub

    Specify the vertical (length) offset at the top of a page.

    The specified value can range from -2 to +2 mm (in increments of 0.5).

    The factory default setting is "0".

    End of page

    Adjust the vertical (length) offset at the end of a page. The specified value can range from -2 to +2 mm (in increments of 0.5).

    Offset Range

    (1): Main= -2 to 2 mm

    (2): Sub= -2 to 2 mm

    (3): End of page= -2 to 2 mm

    (in increments of 0.5)

    Vertical magnification Adjustment
    Unit

    The unit for a vertical magnification adjustment is fixed to [ADF].

    Magnification

    Specify the vertical (length) magnification.

    The specified value can range from -3.1 to +3.1% (in increments of 0.1).

    The factory default setting is "0.0".
