Cleaning the Inside of the Scanner (ADF) with a Cloth

The inside of the ADF can be cleaned with a piece of cloth moistened with Cleaner F1, or a sheet of Cleaning Wipe.

As the scanner continues to feed the documents, paper dust will accumulate inside the ADF and it may cause scanning errors. Cleaning should be performed approximately every 1,000 sheets scanned. Note that this guideline varies depending on the types of documents you scan. For instance, it may be necessary to clean the scanner more frequently when you scan documents on which the toner is not sufficiently fused.

The inside of the ADF becomes very hot when the scanner is being used.

Before you start cleaning the inside of the ADF, make sure to turn off the power, unplug the power cable and wait for at least 15 minutes for the inside of the ADF to cool down.

ATTENTION

Do not use water or mild detergent to clean the ADF.
It may take a long time to dry if an excessive amount of Cleaner F1 is used. Use only a small amount. Wipe off the cleaner completely to leave no residue on the cleaned parts.

Turn off the scanner, unplug the power cable and wait for at least 15 minutes.

For details, refer to How to Turn the Power OFF.
Open the ADF paper chute (feeder).
Open the ADF.

For details, refer to How to Open the ADF.

Perform the following steps with the ADF open.

When the ADF is open, it might close accidentally. Be careful not to get your fingers caught.

ATTENTION

Hold the ADF with one of your hands to keep it open. When you release the ADF, it closes.

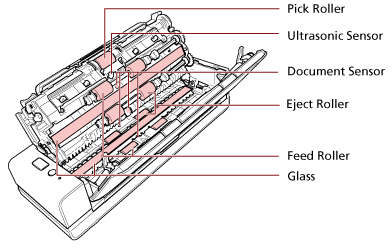

Clean the following locations with a cloth moistened with Cleaner F1, or a sheet of Cleaning Wipe.
Pick Roller (× 1)

Gently wipe dirt and dust off the roller as you rotate the roller manually, taking care not to damage the roller surface. Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.

Ultrasonic Sensor (× 2)/Document Sensor (× 4)

Gently wipe dirt and dust off the surface of the ultrasonic and document sensors.

HINT

If it is difficult to clean, use a cotton swab.

Glass (× 2)

Gently wipe dirt and dust off the glass sections.

ATTENTION

Vertical streaks may appear on images if the glass section is dirty.

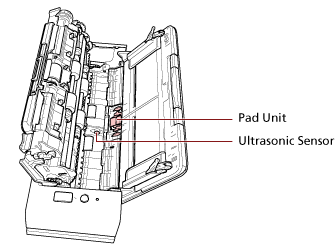

Pad Unit (× 1)

Wipe the rubber surface of the pad downward to remove any dirt and dust. Be careful not to accidentally get your hand or a cloth on the pick spring (metal part).

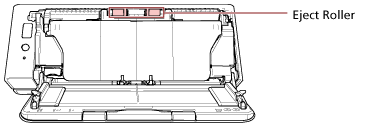

Feed Roller (× 4)/Eject Roller (× 8)
The power must be turned on to rotate the feed/eject rollers for cleaning.
1. Plug in the power cable and turn on the scanner.

  For details, refer to How to Turn the Power ON.
2. Open the ADF.

  For details, refer to How to Open the ADF.

  Perform the following steps with the ADF open.

  When the ADF is open, it might close accidentally. Be careful not to get your fingers caught.

  ATTENTION

  Hold the ADF with one of your hands to keep it open. When you release the ADF, it closes.
3. Press the [Scan/Stop] button for 3 seconds or more in order for the scanner to enter cleaning mode.
4. Press the [Scan/Stop] button.

  The feed/eject rollers rotate a certain amount simultaneously.

  As a guideline, pressing the [Scan/Stop] button seven times will rotate the feed rollers/eject rollers one revolution.

  Be careful not to touch the rollers with your hand while they are rotating.
5. Put a piece of cloth moistened with Cleaner F1 or a sheet of Cleaning Wipe against the surface of the rotating feed/eject roller, and wipe horizontally to clean dirt and dust off the whole surface.

  Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.
Close the ADF.

For details, refer to How to Close the ADF.

Be careful not to get your fingers caught when closing the ADF.

ATTENTION

Confirm that the ADF is closed properly. Otherwise, documents may not be fed into the ADF.
Clear the sheet counter after cleaning.

Start up the Software Operation Panel and clear the counter.

For details, refer to Clearing the Sheet Counters.
