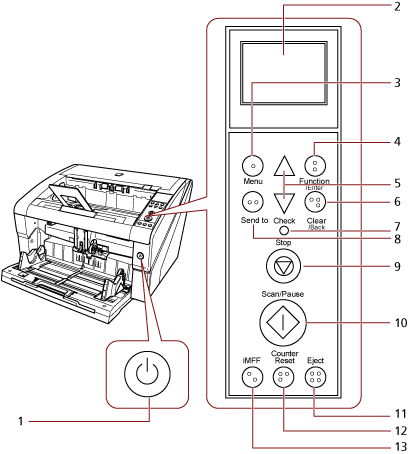

Names and Functions of the Operator Panel
No. |
Name |
Function |
|---|---|---|
1 |
Power button |
Turns the power ON/OFF. Lights (blue) when the scanner is turned on. |
2 |
LCD |
Indicates the status of the scanner. |
3 |
[Menu] button |
Configures various types of scanning operations. |
4 |
[Function/Enter] button |
Confirms the selected item. Switches the number (No.01 to No.50 / No.C) for the application launched by pressing the [Send to] button. |
5 |
[ |
Switches the selected item. Changes the paper separation force. |
6 |
[Clear/Back] button |
Cancels the selected item and returns to the previous screen. Clears the displayed error indication. |
7 |
Check LED |
Lights (orange) when an error occurs. Flashes when consumables reach the end of the life cycle. |
8 |
[Send to] button (*1) |
Launches the linked application software. |
9 |
[Stop] button |
Stops the scan immediately. |
10 |
[Scan/Pause] button (*1) |
Launches the linked application software. Pauses the scan. Resumes the scan. |
11 |
[Eject] button |
Ejects the document when a multifeed occurs. |
12 |
[Counter Reset] button |
Resets the page counter. Stops the scan when pressed while scanning in Manual Feed mode. |
13 |
[iMFF] button |
Changes the settings for Intelligent Multifeed function when pressed down (for more than two seconds). Determines whether or not to memorize the pattern if pressed when a multifeed occurs. |
] / [
] button| *1: | For information on how to scan by using the [Scan/Pause] button or [Send to] button, refer to Using a Button on the Scanner to Start Scanning. |
Do not use the operator panel while the Software Operation Panel is running.
The buttons on the operator panel are also marked in braille,
allowing users to understand each button's function by touching the button.
No.
Braille
Meaning
1
"1" in braille
[Menu] button
2
"2" in braille
[Function/Enter] button
3
"3" in braille
[Send to] button
4
"4" in braille
[Clear/Back] button
5
"5" in braille
[iMFF] button
6
"6" in braille
[Counter Reset] button
7
"7" in braille
[Eject] button
The following languages are available for the buttons on the operator panel: Japanese, English, French, German, Italian, Spanish, Russian, and Chinese (Simplified). You can open the clear cover and insert the operator panel overlay (a sheet on which another language is printed).
