Adjusting the Starting Position for Scanning [Offset Setting/Vertical magnification Adjustment]

When the output position of the scanned image is not correct or the image appears shortened/elongated (vertically), adjust the offset and the vertical (length) magnification.

ATTENTION

Normally, you should not have to modify anything as the factory default settings already use adjusted values.

  1. Start up the Software Operation Panel.

    For details, refer to Starting Up the Software Operation Panel.

  2. From the list, select [Device Setting] and click the [Offset] button.

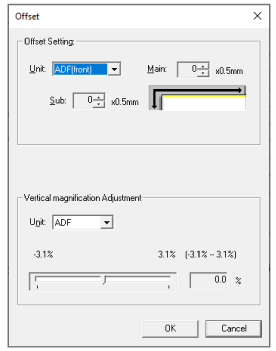

  3. Configure the settings to adjust the offset/vertical magnification as necessary.
    Offset
    Offset Setting
    Unit

    Select [ADF(front)] or [ADF(back)] as the unit for an offset adjustment.

    Main

    Specify the horizontal (width) offset.

    The specified value can range from -2 to +3 mm (in increments of 0.5).

    The factory default setting is "0".

    Sub

    Specify the vertical (length) offset.

    The specified value can range from -2 to +3 mm (in increments of 0.5).

    The factory default setting is "0".

    Offset Range

    (1): Main= -2 to 3 mm

    (2): Sub= -2 to 3 mm

    (in 0.5 mm increments)

    Vertical magnification Adjustment
    Unit

    The unit for a vertical magnification adjustment is fixed to [ADF].

    Vertical magnification Adjustment

    Specify the vertical (length) magnification.

    The specified value can range from -3.1 to +3.1% (in increments of 0.1).

    The factory default setting is "0.0".
